How Much Space Do You Need For A Water Filtration System?

If you're considering installing a water filtration system in your home, one of the first questions that probably comes to mind is: how much space do you actually need? At Spot On Plumbing of Tulsa, we’ve helped hundreds of homeowners find the right system for their needs, and space planning is always a key part of the process.

Whether you’re interested in a Water Right Water Filter, a Whole Home Water Filtration system, or just trying to get cleaner, softer water for your family, this guide will break down everything you need to know about sizing and space requirements.

Get a Quote

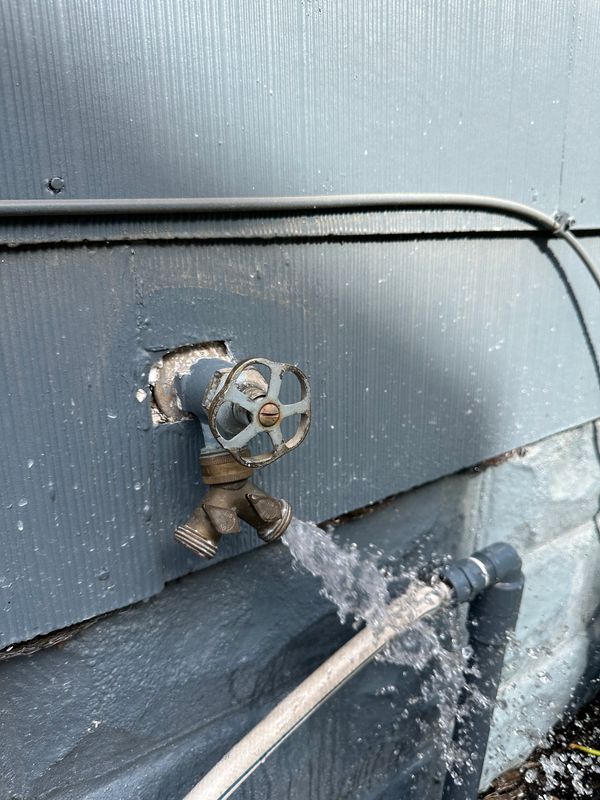

Outdoor Faucet

Why Water Filtration Is Worth the Space

Clean water isn’t just a luxury it’s essential for your health and the longevity of your plumbing system. With more homeowners in Tulsa asking for solutions to hard water, excess water minerals, and chlorine-laden tap water, it's clear that having a water filter is no longer a "nice to have" it's a "must-have."

At Spot On Plumbing, we often recommend Whole Home Water Filtration systems because they treat all the water coming into your house. That means better-tasting water, softer skin, longer-lasting appliances, and reduced buildup in your pipes. But with these benefits comes the need to plan ahead, especially when it comes to space.

Water Filtration Space Requirements What You Need to Know

Understanding the Components of a Water Filtration System

To figure out how much room you'll need, let’s start by looking at the components that make up a typical water filtration system:

  1. Pre-Filters: These capture sediment, dirt, and debris before water reaches the main filtration unit.

  2. Main Filter Tank: This is the heart of your system and can include activated carbon, resin, or other media that remove contaminants and soften your water.

  3. Brine Tank (for softeners): If your system includes a softener, it will likely include a salt tank to regenerate the media inside.

  4. Bypass Valves and Plumbing Lines: These allow you to control water flow and isolate the system for maintenance.

Each of these components varies in size depending on your home’s needs. For example, a 2-person household in Tulsa may need a smaller system than a family of six with high water usage.

Minimum Space Needed for Whole Home Water Filtration

As a general rule of thumb, we recommend a minimum of 3 feet by 2 feet of floor space for a basic Whole Home Water Filtration setup. You’ll also need vertical clearance at least 4 to 5 feet to accommodate the height of the tanks and provide enough room for installation and servicing.

Here’s a breakdown of average space needs for a typical Water Right Water Filter setup:

  • Filter tank height: 48–62 inches

  • Tank diameter: 10–13 inches

  • Brine tank footprint: 18–24 inches wide

  • Clearance around system for maintenance: 6–12 inches on all sides

We always assess the space in your garage, utility closet, or mechanical room to determine the best placement. And since we're local plumbers in Tulsa, we know the common layouts in homes across the area, and we work with what you have.

Ideal Locations to Install Your Water Filtration System

Where should your water filtration system go? These are the most common places we install them:

  1. Garage: Most Tulsa homes have room in the garage where the main water line enters the home.

  2. Utility Room: If your water heater is located inside, we may be able to tie into the main water supply here.

  3. Crawl Space or Basement: Some homes allow for filtration systems to be mounted here, though accessibility for maintenance is a key factor.

Outside (in a protective enclosure): In some cases, systems can be installed outside, but this requires weatherproofing and insulation to prevent freezing.

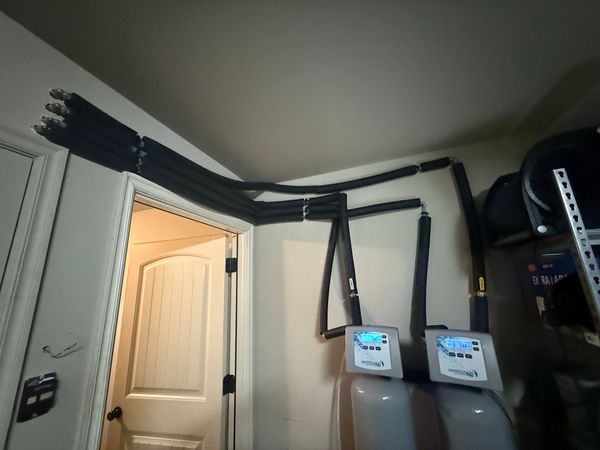

Water Filtration System

Water Filtration Sizing - Not All Systems Are Created Equal

Not all filtration systems are one-size-fits-all. Your ideal system size depends on factors like:

  • Water usage: Larger households use more water and may need a higher-capacity system.

  • Water hardness: Tulsa is known for hard water, so softening capacity matters.

  • Water quality: If your home has excess chlorine, sediment, or other contaminants, additional filters may be needed.

  • Plumbing layout: Where your main water line enters your home affects space and sizing.

At Spot On Plumbing, we custom-tailor each Water Right Water Filter system to the home's unique needs, this includes not only capacity but physical size too.

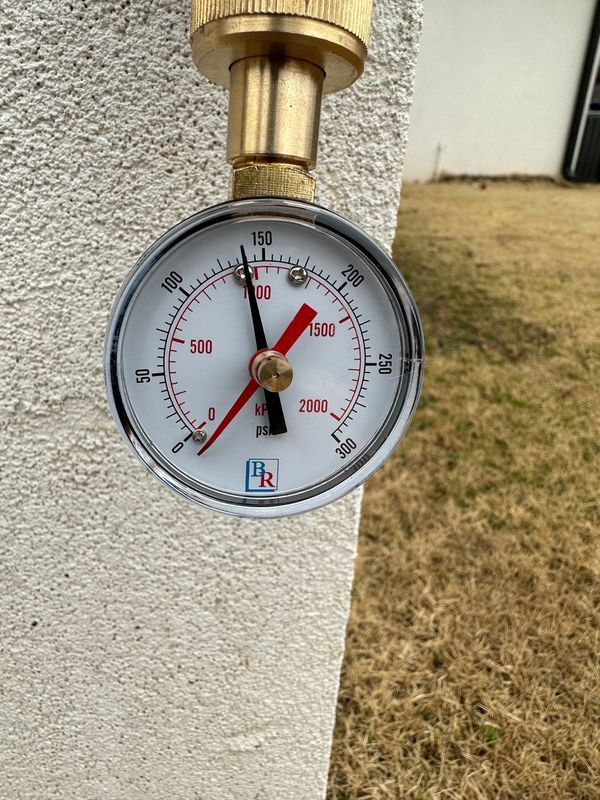

Water Pressure Check

Water Filtration and Your Water Pressure

A big concern for many homeowners is whether a water filter will reduce their water pressure. While it's true that overly small systems can cause a drop in flow, properly sized systems won’t have this issue.

That’s why we assess your flow rate before installing any Whole Home Water Filtration system. If your home typically flows at 12 gallons per minute (GPM), you’ll need a system that can handle at least that, ideally with a little buffer.

This ensures clean, soft water without compromising shower pressure or appliance performance.

Is a Water Filtration System Worth the Space? Absolutely.

If you’re worried about carving out a corner of your garage or utility room for a water filter, remember what you’re gaining:

  • Cleaner water for drinking, cooking, and bathing

  • Soft water that’s easier on your skin, hair, and laundry

  • Extended life for your plumbing system and water-using appliances

  • Better performance from soaps and detergents

  • Peace of mind knowing your family is protected from contaminants

Plus, the systems we install at Spot On Plumbing are built to last and don’t require a ton of maintenance. Once installed, they quietly do their job every day, no countertop clutter, no filters to change every month, and no constant upkeep.

Spot On Team

Why Choose Spot On Plumbing for Your Water Filtration System?

We’re not just plumbers, we’re Tulsa’s experts in clean water solutions. Our team has years of experience installing Water Right Water Filters, and we stand behind every system with professional installation, expert advice, and friendly follow-up service.

When you choose Spot On Plumbing, you’re choosing:

  • Custom sizing for your specific needs and space

  • Transparent pricing, no surprises

  • Local knowledge of Tulsa’s water quality challenges

  • Long-term support for parts, servicing, and questions

As your trusted plumbers in Tulsa, our goal is to help you enjoy better water without the guesswork.

Don’t Let Space Stop You from Cleaner Water

Installing a Whole Home Water Filtration system doesn’t require a massive amount of space, just the right amount, in the right location. Whether you have a spacious garage or a tight utility closet, there’s likely a solution that will work for your home.

If you’re not sure what size system you need or how to make it fit, don’t worry, we’re here to help. At Spot On Plumbing of Tulsa, we offer free estimates, on-site assessments, and honest recommendations. Our goal is simple: give you and your family clean, soft water that’s safe and satisfying.

Ready to Get Started?

Contact Spot On Plumbing today to schedule your free consultation. Let’s find the perfect water filtration system that fits your space, your needs, and your budget. Because everyone deserves water that’s Spot On.
